EQUIPMENT

Developed and designed with the highest technology, the Leogap MRM Roller Grinder features advanced grinding technology with cooled rollers. The result is a fine and uniform grinding, ensuring excellent aroma and color. The denser ground product allows  the use of smaller packaging.

It is available in single-stage (4 rollers) or two-stage (8 rollers) versions, with the first stage typically used for coarser grinding or as granulators for instant coffee industries.

PROCESS

The coffee is grounded using four pairs of rollers divided into two working stages. In the first stage, using the first two pairs of rollers, the distribution, breaking, and coarse grinding of the coffee beans take place. In the second stage, the other two pairs of rollers perform fine grinding, coffee rolling, and extraction for the densifying screw responsible for compressing the coffee.

Benefits for your coffee

The MRM Grinder is designed to meet various grinding granulometries, from coarse to fine, with quality and uniformity. LEOGAP roller mills offer this and many other benefits:

  • Adjustable rollers to control desired granulometry
  • Cooling system during the grinding and compacting process to maintain the characteristics of the roasted coffee
  • Rolls designed with grooves for uniform grinding
  • Excellent extraction yield of ground coffee
  • Compaction system after grinding for better coffee density
Fine Grinding[kg/h]
Medium Grinding[kg/h]
Coarse Grinding[kg/h]
*For Instant Coffee[kg/h]

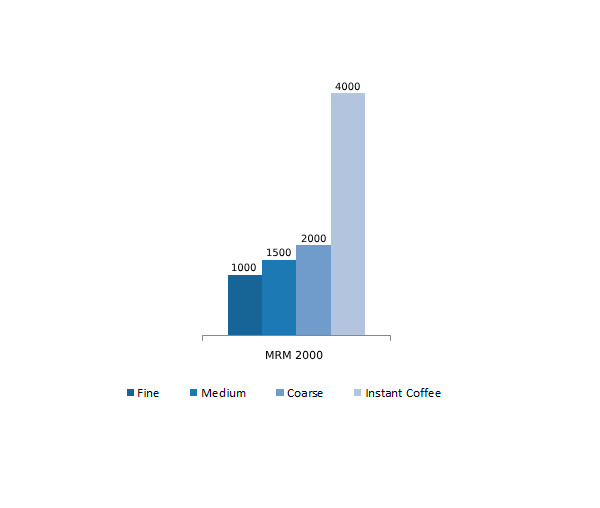

MRM 2000
Fine Grinding[kg/h]
1000
Medium Grinding[kg/h]
1500
Coarse Grinding[kg/h]
2000
*For Instant Coffee[kg/h]
4000
MRM 500
Fine Grinding[kg/h]
300
Medium Grinding[kg/h]
400
Coarse Grinding[kg/h]
500
*For Instant Coffee[kg/h]
1000



*The term *For Instant Coffee* in the table above is specifically intended for the production of instant / soluble coffee, wherein only two pairs of rolls are utilized to achieve this capacity.

Performance Details

Control

LEOGAP Grinders are equipped with a control system monitored via HMI, guaranteeing maximum production reliability.

  • Control via HMI with clear visualization and simple operation
  • Granulometry adjustment through the external adjustment system
  • Cooling system with cooling water temperature monitoring
  • Array of alarms with easy control for preventive maintenance, cleaning and replacement of rollers
ENVIRONMENT COST-BENEFIT

LEOGAP grinders have high performance and were developed to provide the best grinding solutions. They are flexible and offer consistent high quality results with stability during the process. Leogap roller grinders stand out for the following characteristics:

  • Reduction of coffee accumulation on the rollers through the presence of scrapers
  • System with magnetized box that acts as an effective protective shield, preventing the entry of metallic particles, such as iron pieces or other foreign objects that may be present in coffee beans
  • Easy adjustment and flexibility in obtaining the desired product granulometry
  • Easy access for cleaning and rollers maintenance
  • Adjustment configuration allows the spacing adaptation between the rollers to meet the granulometry demand
  • Coffee densifying system
SECURITY

LEOGAP security technology goes far beyond the standard market requirements. We offer high-quality components that guarantee maximum process safety:

  • System for retaining magnetic metals during the coffee feed process;
  • Blocking the opening of the maintenance doors during operation through safety switches with electric locking;
  • Alarm system and parameterized setpoints for operational safety;
  • Safe operation and cleaning
